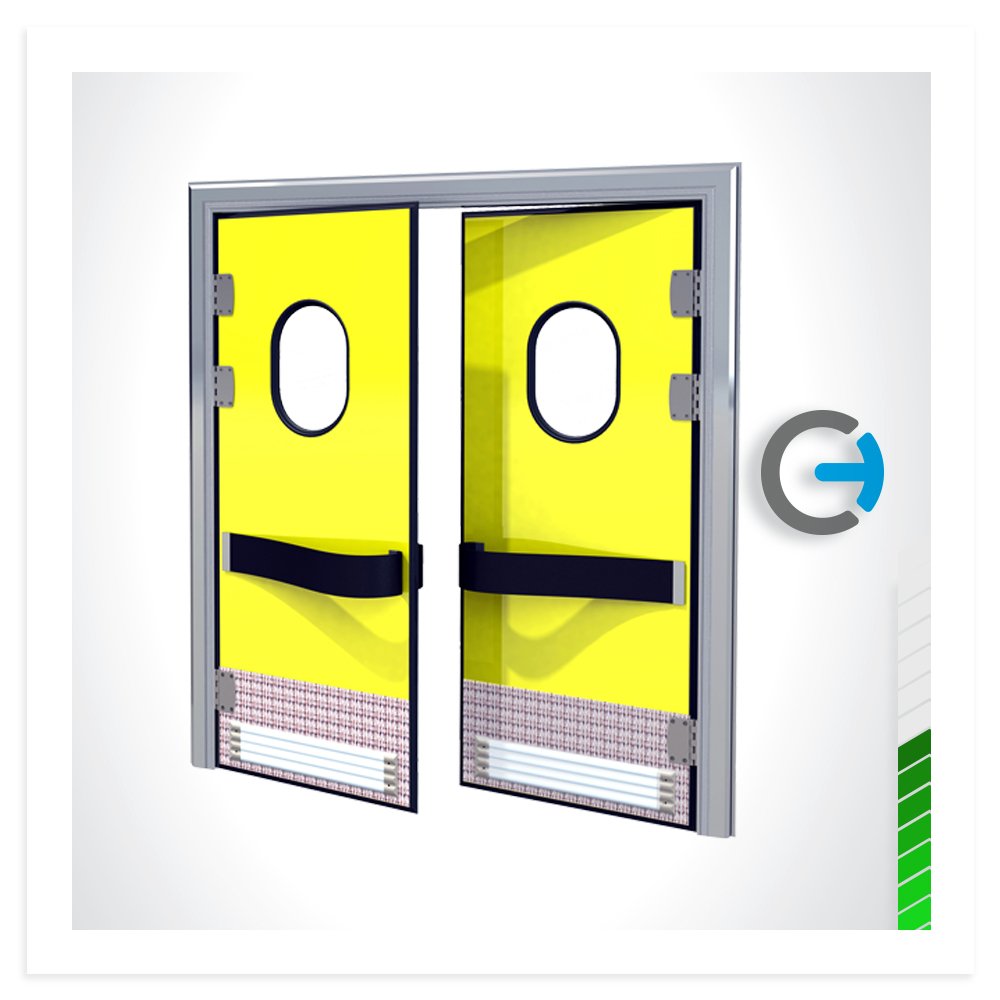

FLIP-FLAP DOOR 200x180

• Door wing internal and external surface is high galvanizing rated, hot dip galvanized plate on min. 5 mic. Lining + 15 mic. antibacterial, HACCP compliant, HighGloss Polyester painted, 0,70 mm, RAL 1018 plate will be used. On the inner surface of the plate, min. 7 mic. Polyurethane compatible primer paint will be used.
• Door Thickness: 4 cm
• The door frame is a special designed first class anodised aluminum profile reinforced by cubbyholes, which strengthen the heat insulation and provide resistance.
• In the doors, special designed EPDM - Rubber high strength gasket is available.
• All wing surfaces have a 5 mm Plexiglass sight glass that does not damage the product or user when broken.
• Surveillance windows are mounted without screw with EPDM-Rubber gasket specially designed for the surface of the wing.
• As wing insulation, 40-42 kg/m� polyurethane will be used in �HARDFOAM� category, which appropriate for a declaration ROHS, 95% closed cell structured.
• Impact absorbent on the wing surfaces is reinforced with Kestemite with a thickness of 5 mm.
• Wing is supported with 1 mm thick Cr-Ni 304 quality chrome on the kickplate part.
• At the bottom of the wing, there will be a special impact absorbing BUMPER
• Wing surface will come to the site with a protective film layer.

ForCatalog:
https://www.cantekgroup.com/catalog/doors.pdf
Installation:
https://www.cantekgroup.com/doc/DOOR ASSEMBLY MANUAL.docx
